Jitsi LDAP Authentication: OpenLDAP and Active Directory

The usual reason to want LDAP on Jitsi Meet is simple: people already have a directory password, and nobody wants a second list of Jitsi accounts to maintain. With LDAP in place, anyone in your OpenLDAP or Active Directory can start a meeting with the credentials they already use, and anyone who leaves the company loses access the moment their directory account is disabled.

This guide combines what used to be two separate articles on our old blog, one for LDAP through Cyrus SASL and one for Active Directory, and brings the steps up to date with the current Jitsi handbook. The older Active Directory method, built on lualdap compiled with luarocks against OpenSSL 1.0 headers, no longer builds cleanly on current Ubuntu. Don't use it.

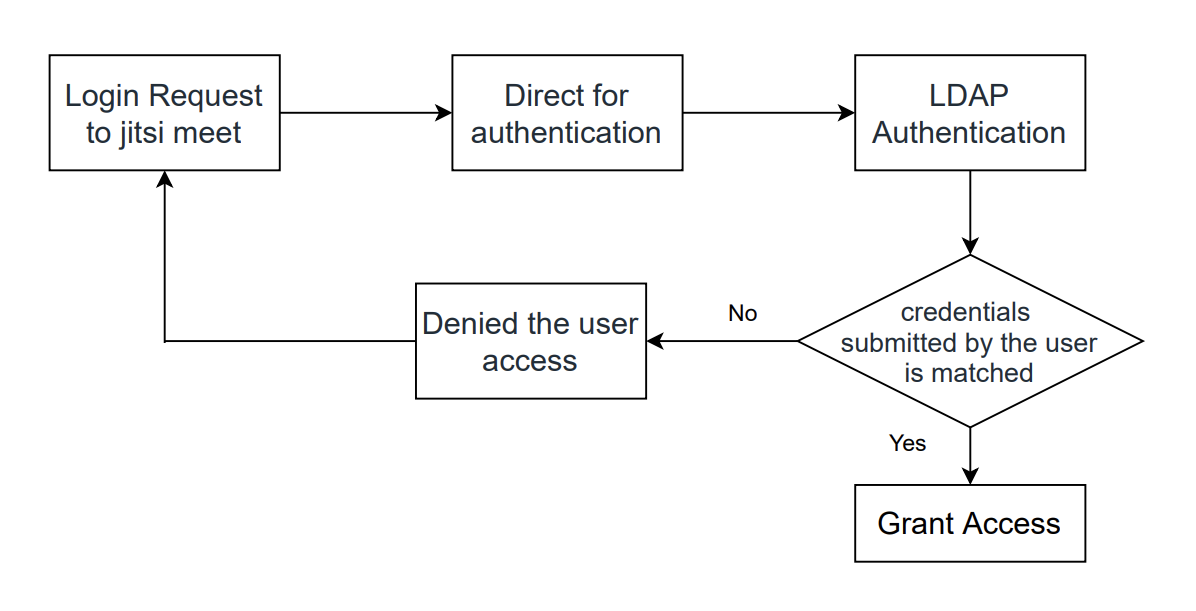

The LDAP authentication process in Jitsi Meet

Jitsi Meet never talks to LDAP directly. When a host enters a username and password, the browser sends them to Prosody, the XMPP server. Prosody hands them to Cyrus SASL (through the mod_auth_cyrus module), Cyrus asks the saslauthd daemon, and saslauthd binds to your directory. A successful bind means a successful login.

That chain matters for debugging. When a login fails, it failed at one of those hops, and each hop has its own log and its own test command. The rest of this guide sets them up in order and tests each one before moving on.

Step 1: Hosts log in, guests don't

Most teams want authenticated users to create meetings and everyone else to join them without an account. That needs a guest domain. The paths below assume a Debian or Ubuntu package install (see installing Jitsi Meet on Ubuntu if you are starting from scratch). Replace meet.example.com with your hostname throughout.

In /etc/prosody/conf.avail/meet.example.com.cfg.lua, add a guest VirtualHost after the main one:

VirtualHost "guest.meet.example.com"
    authentication = "jitsi-anonymous"
    c2s_require_encryption = false

The guest domain is internal to Prosody. It needs no DNS record and no certificate.

In /etc/jitsi/meet/meet.example.com-config.js, tell the web app about it:

var config = {
    hosts: {
        domain: 'meet.example.com',
        anonymousdomain: 'guest.meet.example.com',
        // ...
    },
    // ...
};

And in /etc/jitsi/jicofo/jicofo.conf, turn on authentication so Jicofo only lets logged-in users create rooms:

jicofo {
  authentication: {
    enabled: true
    type: XMPP
    login-url: meet.example.com
  }
  // ...
}

Step 2: Prosody LDAP through saslauthd

Install the SASL daemon, its LDAP module, the Lua bindings Prosody uses, and the Prosody community modules:

sudo apt install -y sasl2-bin libsasl2-modules-ldap lua-cyrussasl prosody-modules
sudo prosodyctl install --server=https://modules.prosody.im/rocks/ mod_auth_cyrus

Create /etc/saslauthd.conf. This example is for OpenLDAP:

ldap_servers: ldaps://ldap.example.com
ldap_bind_dn: cn=jitsi-reader,ou=services,dc=example,dc=com
ldap_bind_pw: REPLACE_WITH_SERVICE_ACCOUNT_PASSWORD
ldap_auth_method: bind
ldap_search_base: ou=people,dc=example,dc=com
ldap_filter: (uid=%U)
ldap_version: 3

The bind account only needs read access to find users. Use a dedicated service account, not a domain admin, and make the file readable by root only, because it holds that password:

sudo chmod 600 /etc/saslauthd.conf

Active Directory LDAP authentication settings

Active Directory needs three changes: the sAMAccountName attribute, a bind account in user@domain form, and LDAPS on port 636 so AD authentication never sends passwords in clear text (the Cyrus SASL documentation lists every ldap_ option if you need more):

ldap_servers: ldaps://dc01.corp.example.com
ldap_bind_dn: svc-jitsi@corp.example.com
ldap_bind_pw: REPLACE_WITH_SERVICE_ACCOUNT_PASSWORD
ldap_auth_method: bind
ldap_search_base: dc=corp,dc=example,dc=com
ldap_filter: (sAMAccountName=%U)
ldap_version: 3
ldap_tls_check_peer: yes
ldap_tls_cacert_file: /etc/ssl/certs/ca-certificates.crt

Two details trip people up here. %U is the username without any realm, while %u can include one, and sAMAccountName never contains a realm. And for ldap_tls_check_peer to succeed, your domain's root CA has to be in the system trust store. Copy it into /usr/local/share/ca-certificates/ and run sudo update-ca-certificates.

To let only one group create meetings, tighten the filter:

ldap_filter: (&(sAMAccountName=%U)(memberOf=CN=Jitsi Hosts,OU=Groups,DC=corp,DC=example,DC=com))

Start and test saslauthd

Enable the LDAP mechanism in /etc/default/saslauthd:

sudo sed -i -e "s/^START=.*/START=yes/" -e "s/^MECHANISMS=.*/MECHANISMS=\"ldap\"/" /etc/default/saslauthd
sudo systemctl enable --now saslauthd
sudo systemctl restart saslauthd

Now test the directory hop on its own, before Prosody is involved:

sudo testsaslauthd -u alice -p 'alice-password' -s xmpp

0: OK "Success." means saslauthd can find the user and bind as them. Do not continue until you see it. A failure here is an LDAP problem (filter, bind account, TLS), and no Prosody setting will fix it. Watch /var/log/auth.log while you retry.

Step 3: Switch Prosody to Cyrus

Tell Cyrus SASL to use saslauthd for Prosody by creating /etc/sasl/prosody.conf:

sudo mkdir -p /etc/sasl
printf 'pwcheck_method: saslauthd
mech_list: PLAIN
' | sudo tee /etc/sasl/prosody.conf

Let Prosody talk to the saslauthd socket by adding it to the sasl group:

sudo adduser prosody sasl

Older guides, including ours, told you to chmod 777 /var/run/saslauthd/ instead. That lets every local user on the box query your directory through the socket. Group membership does the same job properly.

Finally, change the main VirtualHost in /etc/prosody/conf.avail/meet.example.com.cfg.lua from anonymous to Cyrus:

VirtualHost "meet.example.com"
    authentication = "cyrus"
    allow_unencrypted_plain_auth = true
    -- keep the existing ssl and modules_enabled settings below

allow_unencrypted_plain_auth sounds alarming, but PLAIN is the only mechanism saslauthd can verify, and the browser's connection is already encrypted by nginx before it reaches Prosody. Restart everything:

sudo systemctl restart prosody jicofo jitsi-videobridge2

Open a new room. You should see a Waiting for the host prompt with an I am the host button. Log in with a directory account and the meeting starts; guests who arrive later go straight in.

When logins still fail

Once logins work, look at the rest of the attack surface. Authentication only controls who creates rooms; lobby, room passwords and open ports are covered in Jitsi Meet security best practices.
