Mattermost Dev Guide

Get Mattermost up and running on AWS with our step-by-step guide. Learn how to deploy, configure, and optimize it for secure, scalable team collaboration or a DevOps command center in the cloud.

Learn how to install and configure Mattermost on AWS with our step-by-step deployment guide. This comprehensive guide walks you through everything from provisioning your cloud environment to securely deploying and optimizing Mattermost for scalability, high availability, and performance on AWS. Whether you're building a DevOps command center or a secure team collaboration hub, this guide will help you get Mattermost running efficiently in the cloud.

Prerequisites

Before you get started with the Mattermost AMI, ensure you have the following prerequisites:

Launching the AMI

Step 1: Find and Select 'Mattermost' AMI

  1. Log in to your AWS Management Console.
  2. Navigate to the 'Mattermost' in  AWS Marketplace.

Step 2:  Initial Setup & Configuration

  1. Click the "Continue to Subscribe" button.
  2. After subscribing, you will need to accept the terms and conditions. Click on "Accept Terms" to proceed.
  3. Please wait for a few minutes while the processing takes place. Once it's completed, click on "Continue to Configuration".
  4. Select the "CloudFormation script to deploy Mattermost" as the fulfilment option and choose your preferred region on the "Configure this software" page. Afterward, click the "Continue to Launch" button.
  5. From the "Choose Action" dropdown menu in "Launch this software" page, select "Launch CloudFormation" and click "Launch" button.

Create CloudFormation Stack

Step1: Create stack

  1. Ensure the "Template is ready" radio button is selected under "Prepare template".

2. Click "Next".

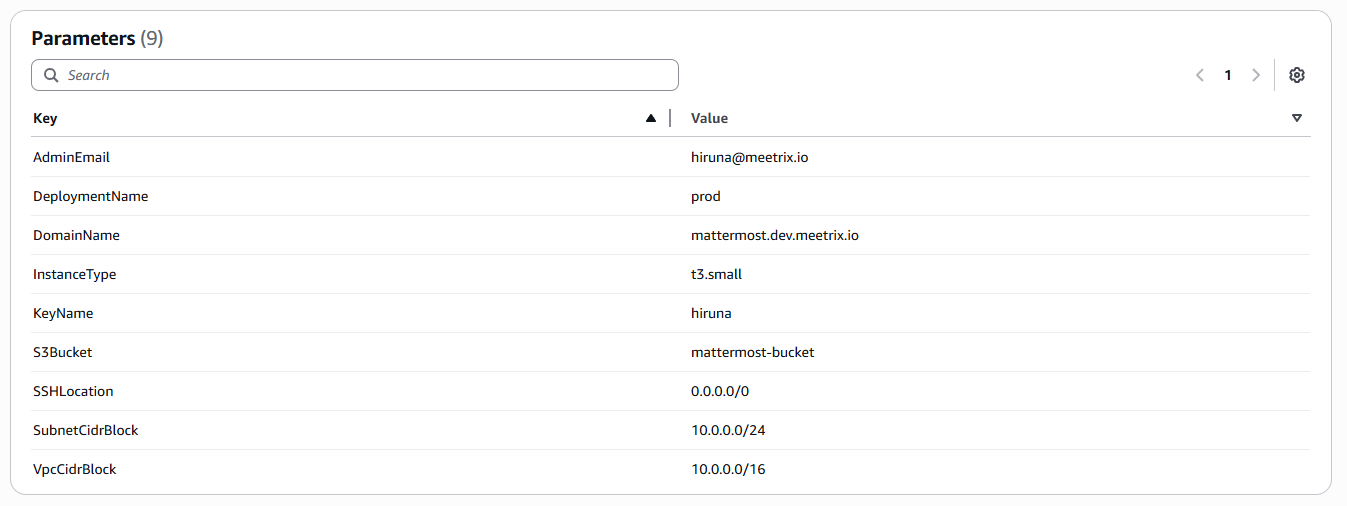

Step2: Specify stack options

  1. Provide a unique "Stack name".
  2. Provide the "Admin Email" for SSL generation.
  3. For "DeploymentName", enter a name of your choice.
  4. Provide a public domain name for "DomainName" (Mattermost will automatically try to setup SSL based on provided domain name, if that domain hosted on Route53. Please make sure your domain name hosted on route53. If its unsuccessful then you have to setup SSL manually).
  5. Choose an instance type, "InstanceType" (Recommended: t3.small).
  6. Select your preferred "keyName".
  7. Provide a S3 bucket name to "S3Bucket" for storing Database Backups.
  8. Set "SSHLocation" as "0.0.0.0/0".
  9. Keep "SubnetCidrBlock" as "10.0.0.0/24".
  10. Keep "VpcCidrBlock" as "10.0.0.0/16".
  11. Click "Next".

Step3: Configure stack options

  1. Choose "Roll back all stack resources" and "Delete all newly created resources" under the "Stack failure options" section.
  2. Click "Next".

Step4: Review

  1. Review and verify the details you've entered.

2. Tick the box that says, "I acknowledge that AWS CloudFormation might create IAM resources with custom names".

3. Click "Submit".

Afterward, you'll be directed to the CloudFormation stacks page.

Please wait for 5-10 minutes until the stack has been successfully created.

Update DNS

Step1: Copy IP Address

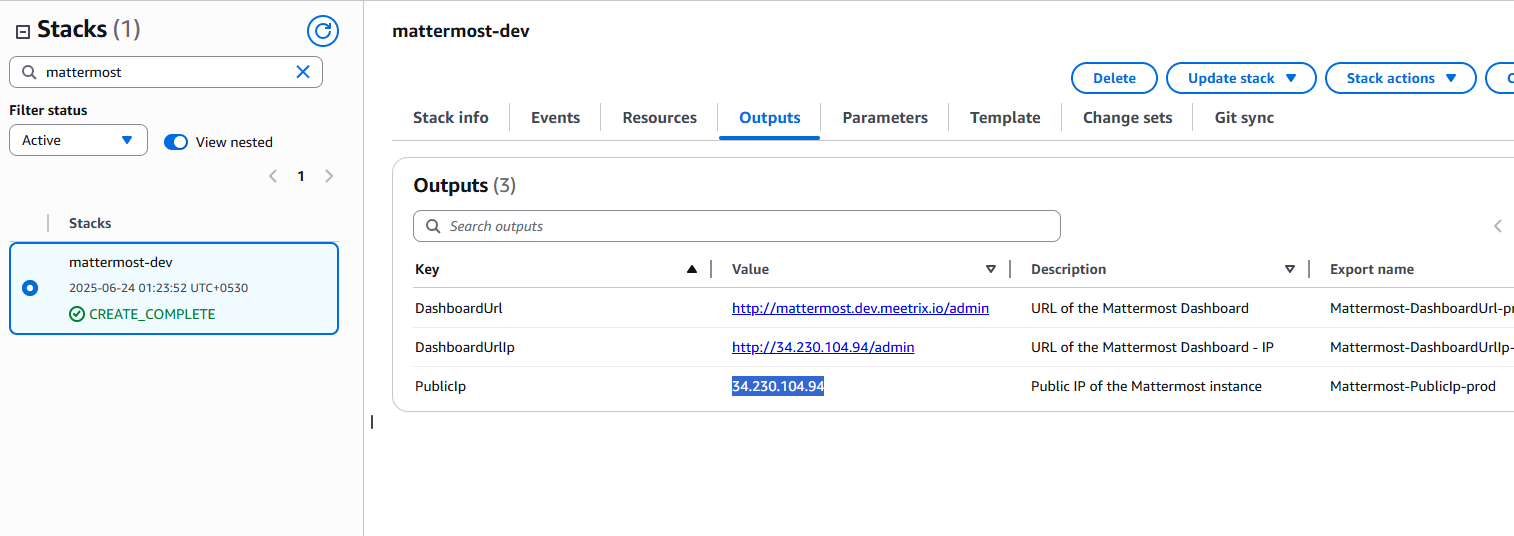

Copy the public Ip labeled "PublicIp" in the "Outputs" tab.

Step2: Update DNS

  1. Go to AWS Route 53 and navigate to "Hosted Zones".

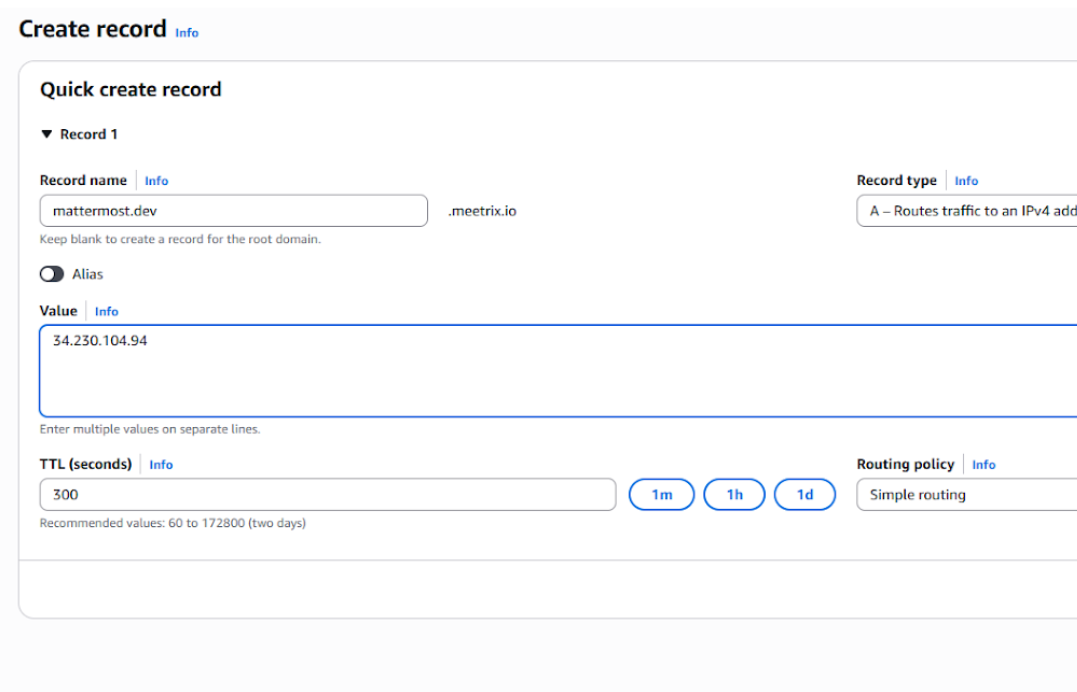

  2. From there click on Create record.

3. Add record name and then paste the copied "PublicIp" into the "value" textbox.

4. Click "Save".

Access Mattermost

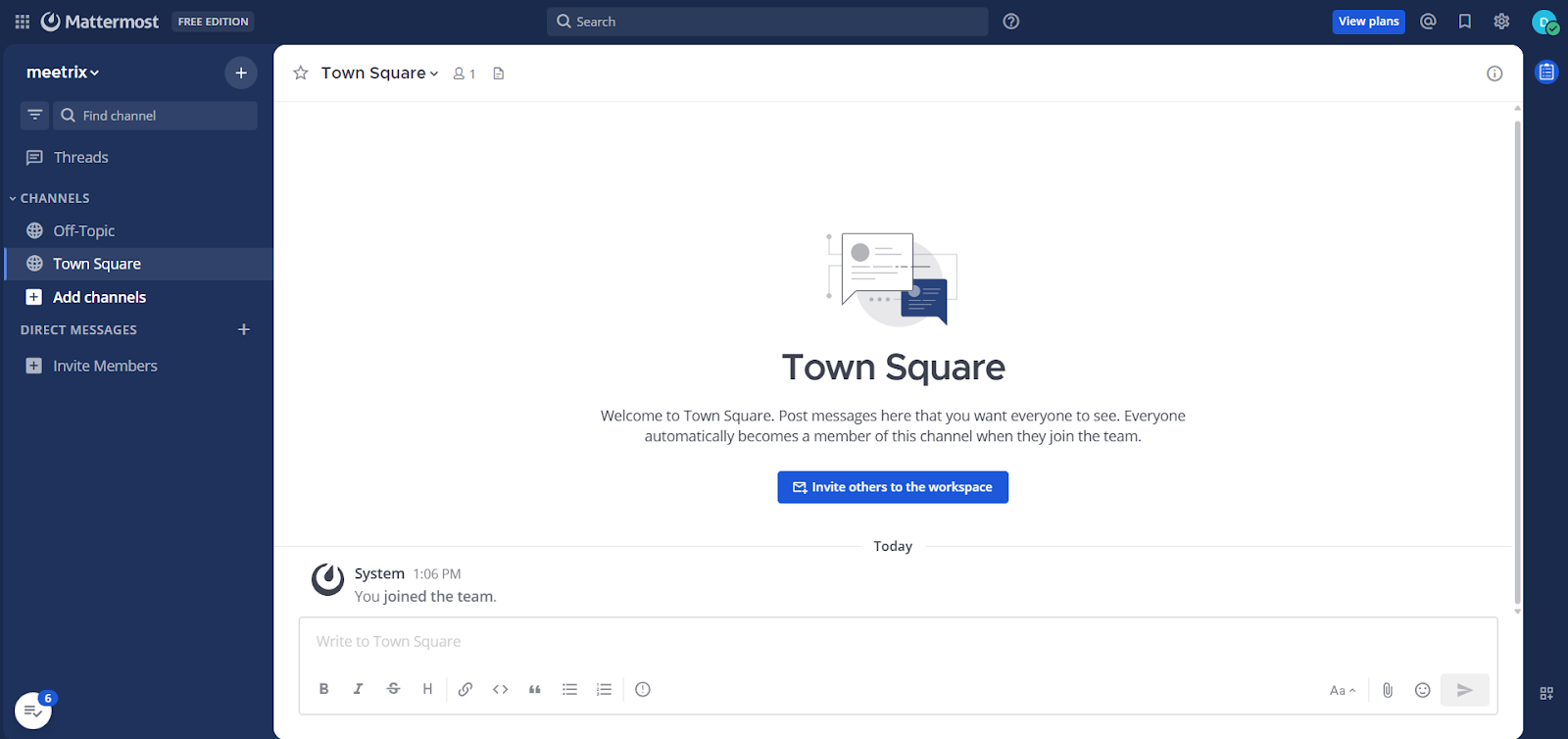

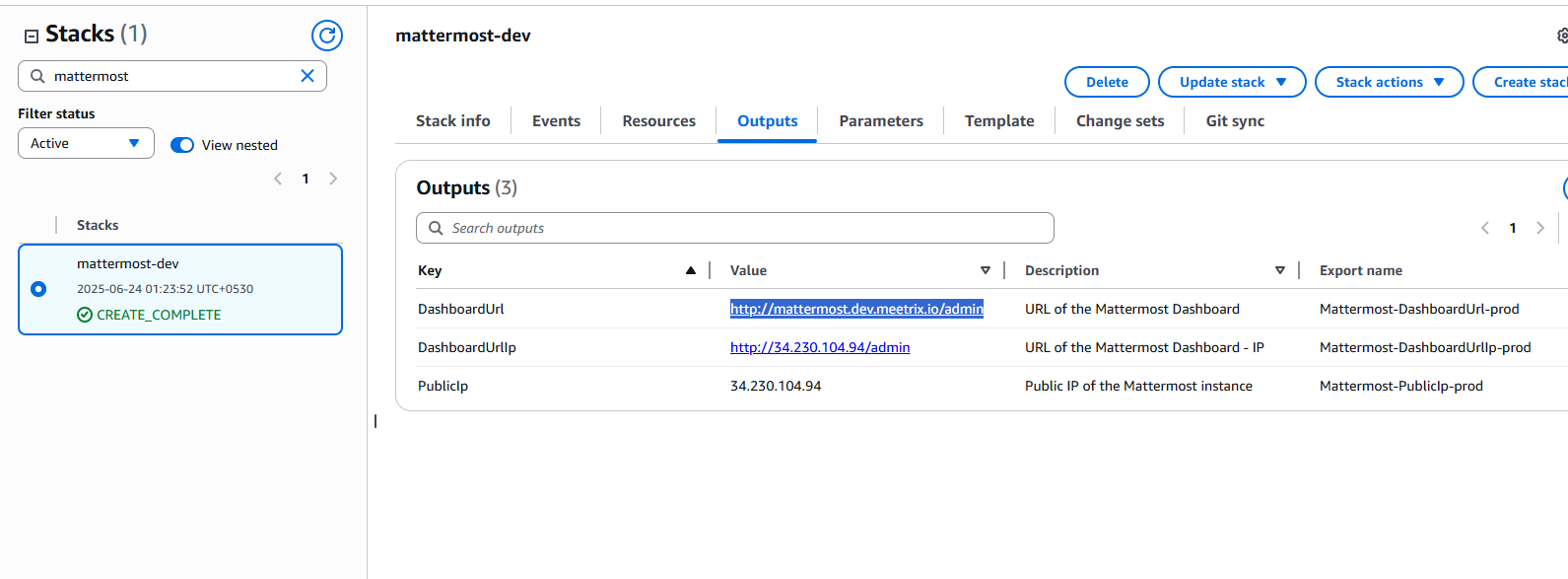

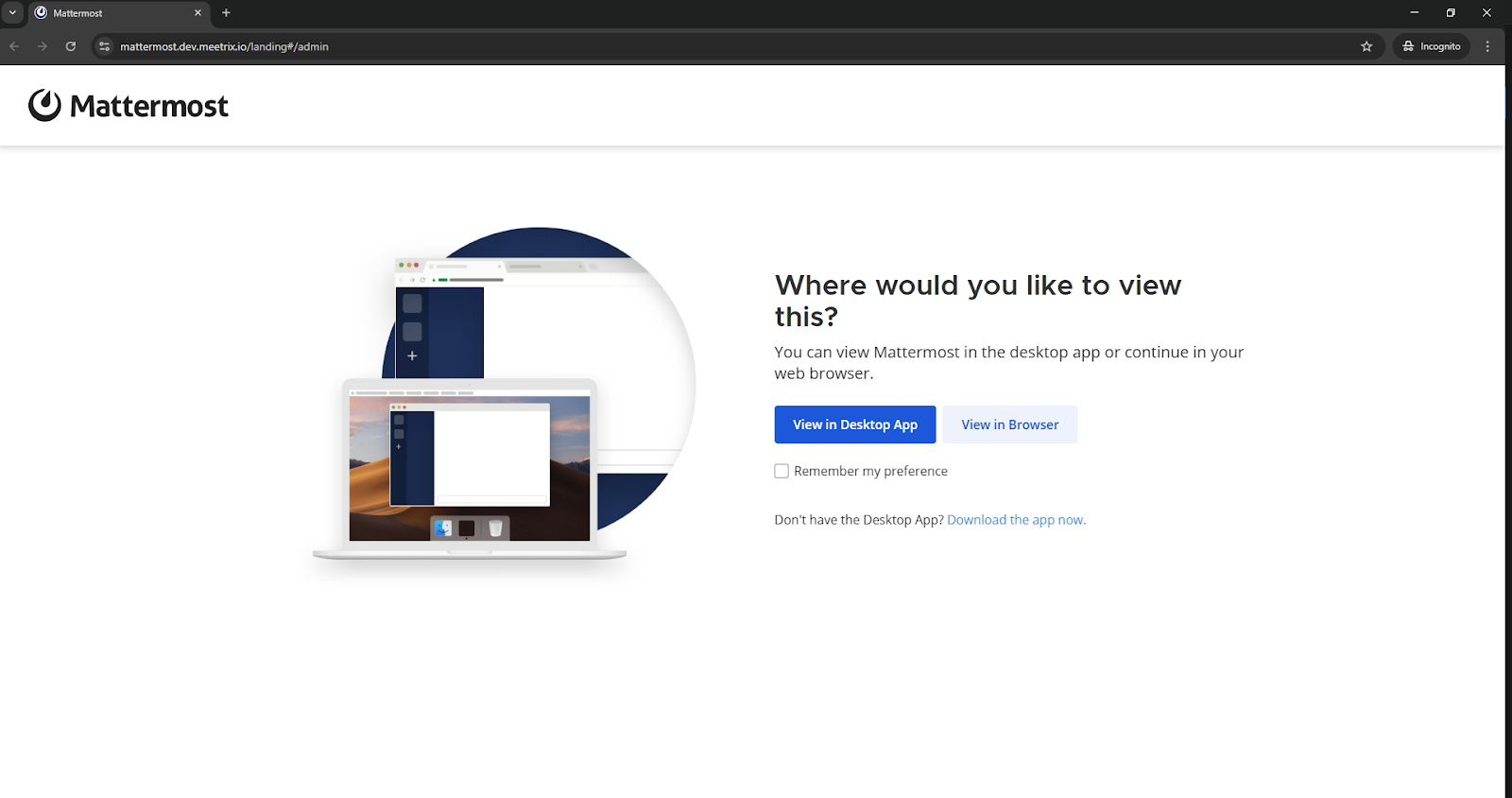

You can setup the Mattermost application through the "DashboardUrl" or "DashboardUrlIp" provided in the "Outputs" tab. This will allow you to create an Admin account and all the future accounts will be created through the Admin panel.

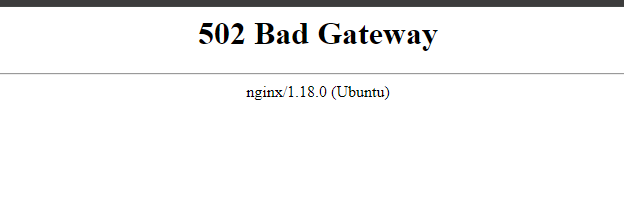

(If you encounter a "502 Bad Gateway error", please wait for about 5 minutes before refreshing the page)

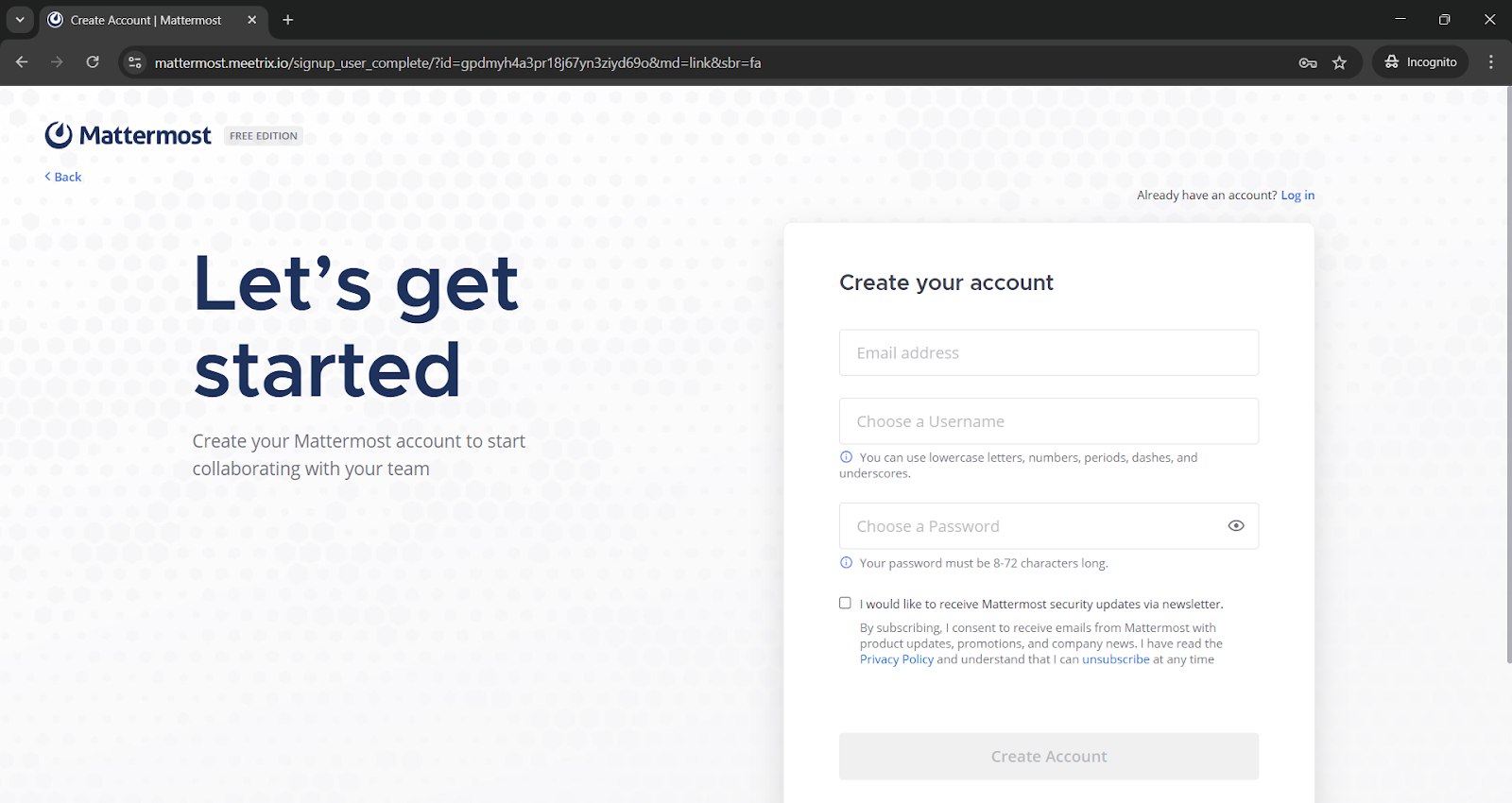

Enter all the required details and click on the “Create Account” button.

Important: You are now creating the Administrator Account for your Mattermost deployment. The email address and password you provide here will be used to manage your entire workspace including inviting team members, configuring system settings, and maintaining overall access. Make sure to choose a strong password and store your credentials securely, as they are critical for future access and team management.

Generate SSL Manually

Mattermost will automatically try to setup SSL based on provided domain name, if that domain hosted on Route53. If its unsuccessful then you have to setup SSL manually.

Step1: Copy IP Address

  1. Proceed with the instructions outlined in the above "Update DNS" section, if you have not already done so.
  2. Copy the Public IP address indicated as "PublicIp" in the "Outputs" tab.

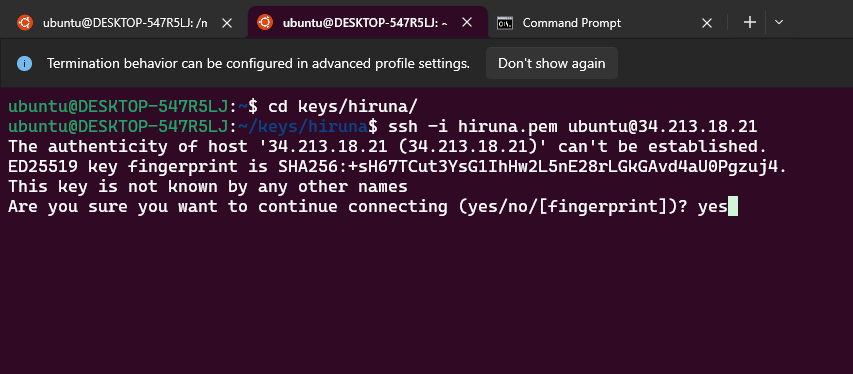

Step2: Log in to the server

  1. Open the terminal and go to the directory where your private key is located.
  2. Paste the following command into your terminal and press Enter: ssh -i <your key name> ubuntu@<Public IP address>.

3. Type "yes" and press Enter. This will log you into the server.

Step3: Generate SSL

Paste the following command into your terminal and press Enter and follow the instructions:

sudo /root/certificate_generate_standalone.sh

Admin Email is acquiring for generate SSL certificates.

Check Server Logs

Step1: Log in to the server

  1. Open the terminal and go to the directory where your private key is located.
  2. Paste the following command into your terminal and press Enter:
ssh -i <your key name> ubuntu@<Public IP address>

3. Type "yes" and press Enter. This will log you into the server.

Step2: Check the logs

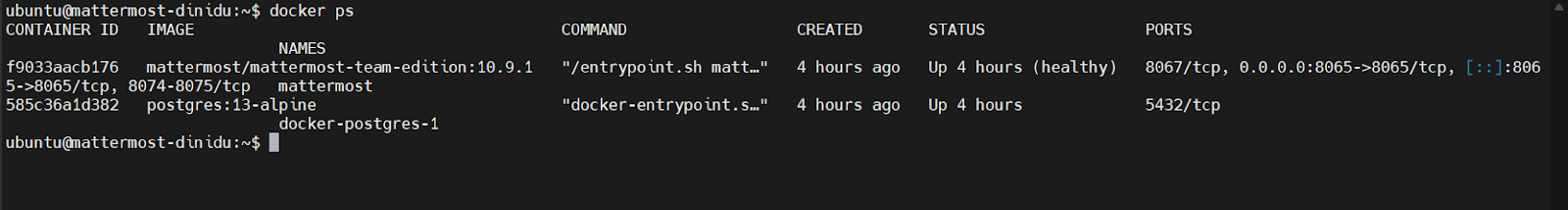

List the available containers

sudo docker ps

Select the correct container and check logs

sudo docker logs f9
sudo docker logs 58

Shutting Down Mattermost

  1. Click the link labeled "Instance" in the "Resources" tab to access the EC2 instance, you will be directed to the Mattermost instance in EC2.

2. Select the Mattermost instance by marking the checkbox and click "Stop instance" from the "Instance state" dropdown. You can restart the instance at your convenience by selecting "Start instance".

Remove Mattermost

Delete the stack that has been created in the AWS Management Console under 'CloudFormation Stacks' by clicking the 'Delete' button.

Upgrades

When there is an upgrade, we will update the product with a newer version. You can check the product version in AWS Marketplace. If a newer version is available, you can remove the previous version and launch the product again using the newer version. Remember to backup the necessary server data before removing.

Troubleshoot

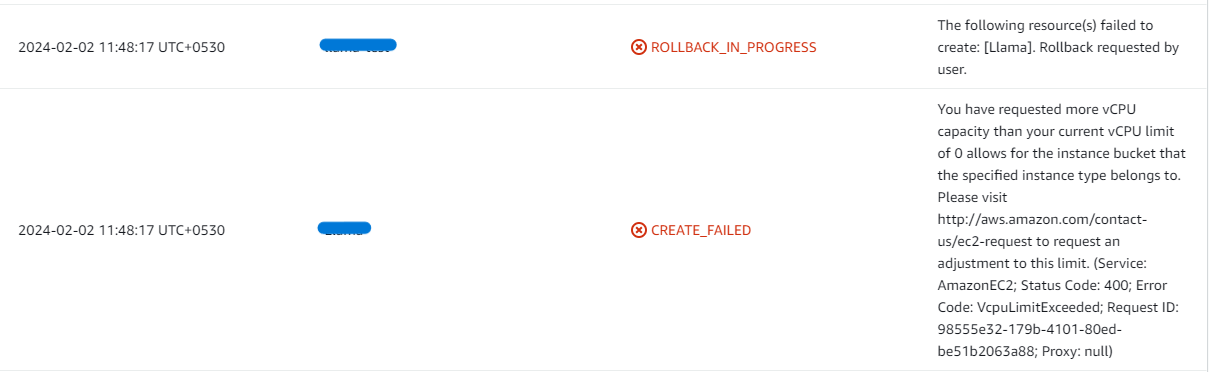

  1. If you face the following error, please follow https://meetrix.io/articles/how-to-increase-aws-quota/ blog to increase vCPU quota.

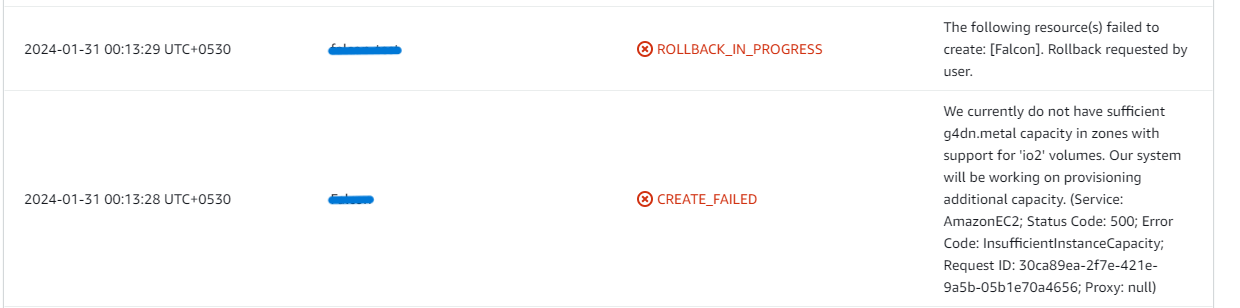

2.  If you face the following error (do not have sufficient <instance_type> capacity...) while creating the stack, try changing the region or try creating the stack at a later time.

3. If you face the below error, when you try to access the API dashboard, please wait 5-10 minutes and then try.

4. Check whether the instance storage is full.

  • Log into the server and run the below command
df -h

root volume

  • If the root volume is between 90-100%, it is better to resize EBS volume. Please follow AWS documentation to increase the EBS volume.
  • Then reboot the instance.

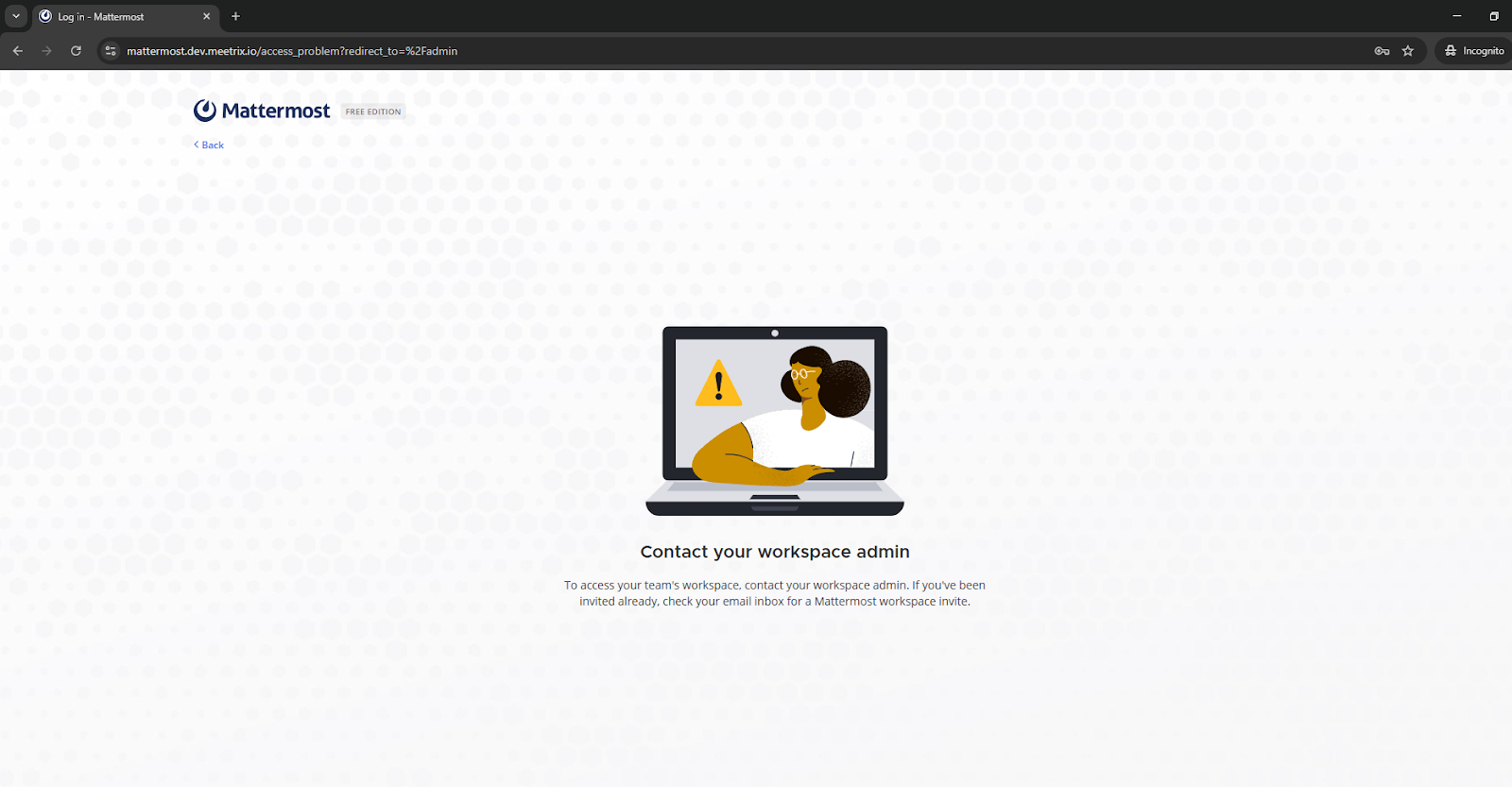

5. If you can't access your team's workspace?
If you're unable to sign up or access the workspace:

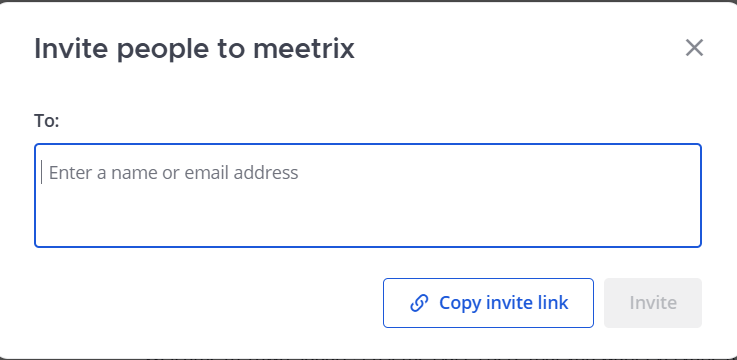

Contact your Workspace Administrator – They can provide you with the correct invite link or troubleshoot access permissions.

Once you receive the invite link, you can use it to sign up and join your team.

If issues persist, reach out to your IT support team or deployment owner for further assistance.

Conclusion

The Meetrix Mattermost Deployment Guide is your go-to resource for seamlessly integrating Mattermost into your AWS environment. Whether you're a DevOps engineer, system administrator, or IT leader, our guide provides clear, step-by-step instructions to ensure a secure and scalable setup. Mattermost is a powerful open-source collaboration platform built for high-trust environments, empowering teams with real-time communication, automation, and integration flexibility. With the Meetrix Mattermost Deployment Guide, you'll unlock the full potential of Mattermost, enabling your organization to build efficient, secure, and self-hosted communication systems that scale with your needs.

Technical Support

Reach out to Meetrix Support (aws@meetrix.io)  for assistance with Mattermost issues.
